Permanent Magnetic Lifters

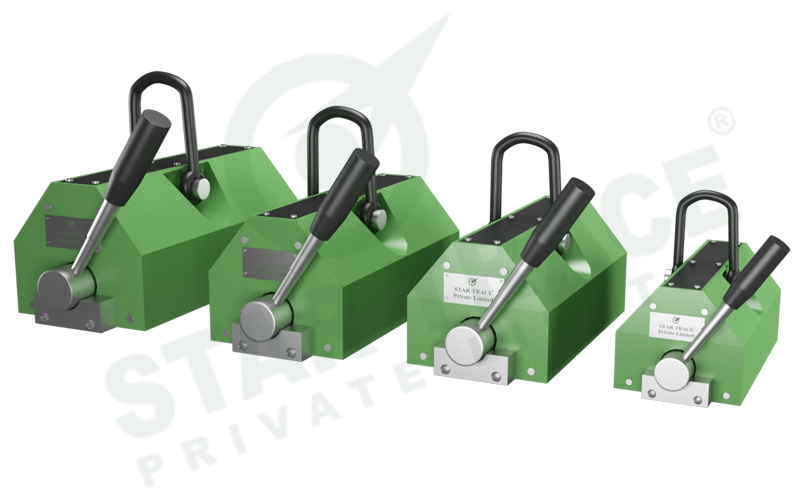

Permanent Magnetic Lifter

INTRODUCTION:

The quick, safe and easy way to lift ferrous materials and work pieces. These are two Pole Permanent Magnetic Lifters. The two poles are at the bottom of the lifter. These lifters use high grade Magnets for producing strong magnetic flux path through the two poles. The lifter is placed on the MS flat/block that is to be lifted. The turn of the handle in its ON position with MS flat/block/cylinders (to be lifted) at the bottom ensures completion of magnetic flux path through the MS body. The MS body gets attached to the lifter. The turn of the handle in its OFF position detaches the MS body from the magnetic lifter.

WORKING PRINCIPLE:

Permanent lifter is made up of two parts, such as permanent sucker and discharge device. The permanent sucker is made up of permanent magnet and magnet-conductive plate. The magnetic force wire generated by the permanent magnet will go through the magnet-conductive plate, attracted materials and form a closed circuit thus to achieve the purpose of lifting the steel materials. It is suitable for being used to lift and transport magnet-conductive billets, plates and rounds in industries of mechanical engineering, metallurgy, shipyard, car factory, dock and etc.

DETAILED PRODUCT DESCRIPTION:

We are the most prestigious manufacturer and supplier of Industrial Permanent Magnet Lifter, offered at reasonable price for ensuring the complete satisfaction of customers. These Permanent Magnet Lifters are made-up of remarkable quality raw materials to ensure better quality and performance of products. We send all products for multistage quality check-up before supplying to the customers, which ensure customers satisfaction. Our company is supported by skilled worker who have specialization in this field. "Star-Lift" Permanent Magnetic Lifter Compact and lightweight Suitable for flat and round material Very high Lift to its weight ratio Quick & easy operation with On/Off system Neodymium Magnetic Powered System Improves plant Safety no direct contact with men Large and heavy work piece can be moved/handled safely and easily by only one operator.

Permanent Star-Lift Magnet Handling Heavy weight products has made easy by Permanent Star-Lift Magnet These Magnetic Lifters are widely used in the industry. Apart from machine tool they are used in variety of industries. The Idea behind is to cut the time by conventional, unsafe handling to safe, secure and faster operation of lifting and handling of heavy products. Construction of Permanent Star-Lift Magnet is itself a high-end technology with careful selection of material and testing. Our experience and feedback of our customers have made our product more reliable than any others Notes: Holding Values for the Power Lift Magnets are stated at 33% of the actual value.

When lifting sheets over 4'x8', use 2 or more lifts on a spreader bar to prevent sheet flexing, sagging or peel-off. Material less than 3/8" thick is susceptible to magnetic bleed through, resulting in two sheets being lifted at once. *Round Item Holding Values are based on ideal conditions. Pipes length, Wall thickness diameter and surface condition can all affect the magnets performance. Please consult the factory before specifying these magnets for use on round material. These sheet sizes are selected due to the sag characteristics of the specified sheet. All other maximum sheet sizes are recommended due to the weight of the specified sheet. Note: Technical data and specification subject to change.

BASIC TECHNIQUES:

Attach the permanent magnet lifter to suitably tested lifting equipment, using the body hook. To attach the permanent magnet lifter to the item being lifting, simply offer the base of the unit up to a clean, grease free on the item. Determine the load weight and centre of gravity as accurately as possible. Once in position, move the magnet level fully anticlockwise until it is held captive by the level lock. Once attached, rise and move the item to where it is required. Before lifting/moving, ensure the load is free and not restrained by fixings etc. Lift the load a nominal distance to check balance and security of the load. Use tag lines to control long or bulky load.

NOTE:

Holding Values for the Power Lift Magnets are stated at 33% of the actual value. When lifting sheets over 4'x8', use 2 or more lifts on a spreader bar to prevent sheet flexing, sagging or peel-off. Material less than 3/8" thick is susceptible to magnetic bleed through, resulting in two sheets being lifted at once. Round Item Holding Values are based on ideal conditions. Pipe length, Wall thickness diameter and surface condition can all effect the magnets performance. Please consult the factory before specifying these magnets for use on round material.

Benefits

The following are the benefits of permanent magnetic lifter:

  • Compact and lightweight.
  • Suitable for Flat and round material.
  • Very High Lift to its weight ratio.
  • Quick & Easy Operation with ON/OFF System.
  • Neodymium Magnetic Powered System.
  • Improves Plant Safety No direct contact with men.
  • Large and Heavy work piece can be moved/handled safely easily by only one operator.

Applications

  • For handling of steel plates, blocks, rounds, press moulds and loading/unloading on machines
  • Commonly used near flame cutting.
  • Very handy during fabrication.
  • Can handle finished components without leaving behind any scratch marks, unlike binding and slinging.
  • Can be used with spreader beam hanging multiple magnets for long plates/pipes /bars.
  • Can be used with mobile cranes.

Specification


Technical Data of PM Lifter

Model No Holding Value
Flat Items (Kg)
Holding Value
Round Items (Kg)
Length
mm
Width
mm
Height
mm
Weight
mm
STR 100 100 50 100 65 70 5
STR 200 250 250 150 100 100 10
STR 600 600 300 250 120 115 25
STR 1000 1000 500 320 175 160 30
STR 2000 2000 1000 375 230 210 125
STR 3000 3000 1500 460 285 260 220
STR 6000 6000 3000 600 430 355 420


Stated Value Model No. Holding Value & Max. Sheet Size for Specified Material Thickness
5 mm 6 mm 9 mm 12 mm 19 mm 25 mm
100 Kgs STR 100 63 Kgs (4' x 4') 75 Kgs (4' x 4') 113 Kgs (4' x 4') 85 Kgs (3' x 3') 89 Kgs (2' x 3') 89 Kgs (2' x 2.5')
250 Kgs STR 250 94 Kgs (4' x 6') 123 Kgs (4' x 6') 275 Kgs (4' x 8') 300 Kgs (4' x 8') 296 Kgs (4' x 5') 296 Kgs (4' x 4')
600 Kgs STR 600 - - - 365 Kgs (4' x 8') 600 Kgs (4' x 8') 600 Kgs (4' x 8')
1000 Kgs STR 1000 - - - - 440 Kgs (4' x 8') 656 Kgs (4' x 8')
